BIOBASE BBS-V680 ตู้เขี่ยเชื้อ ตู้ปลอดเชื้อขนาดเล็ก Laminar air Flow
รหัสสินค้า : LB010
| ราคา |
0.00 THB |
| จำนวนที่จะซื้อ | |
| ราคารวม | 0.00 THB |
สินค้าไม่เพียงพอ
สินค้าหมด
Laminar Flow Cabinet-sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air
through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

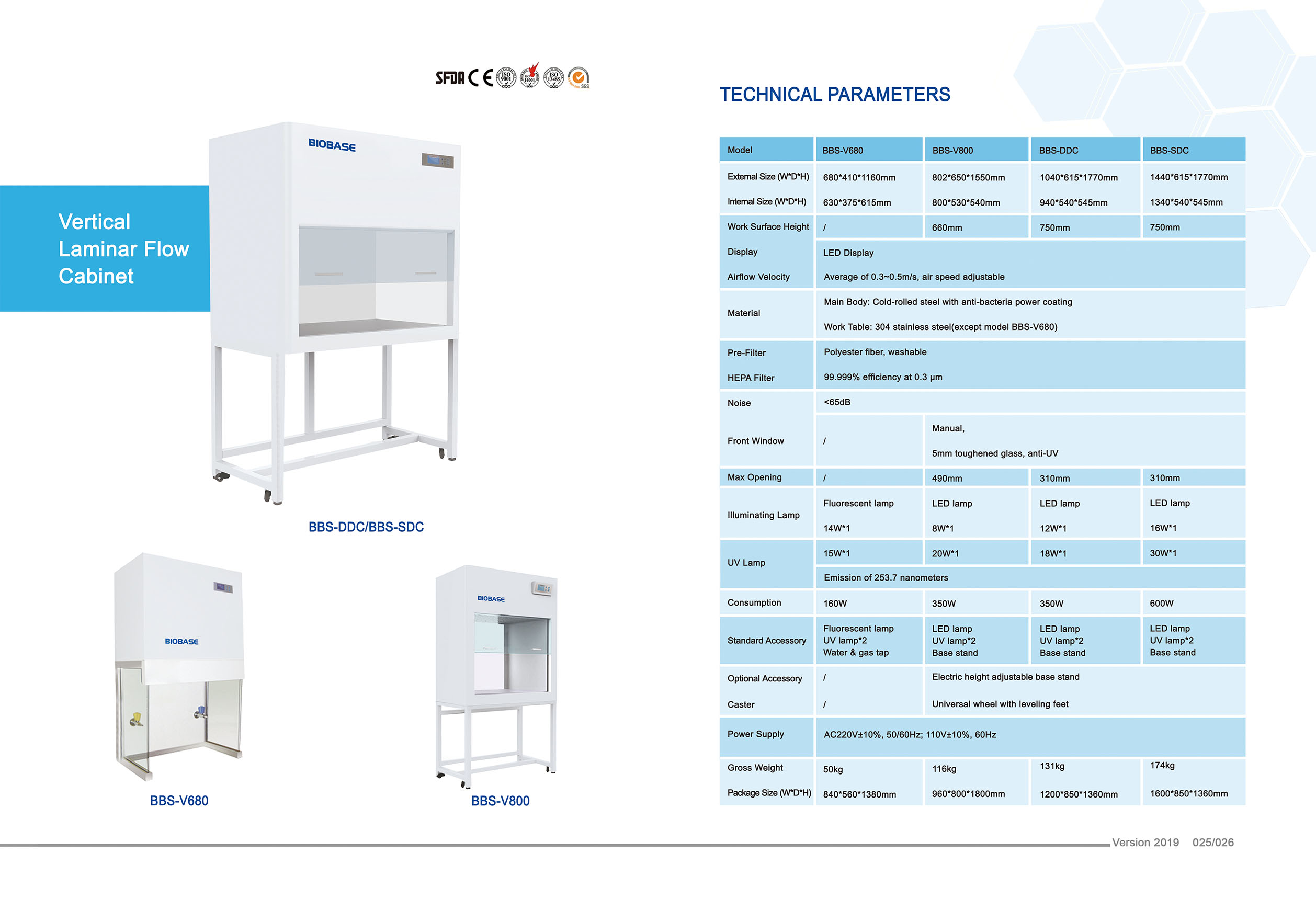

TECHNICAL PARAMETERS:
Model | BBS-V680 | BBS-V800 | BBS-DDC | BBS-SDC |
External Size (W*D*H), mm | 680*410*1160 | 802*650*1550 | 1040*615*1770 | 1440*615*1770 |
Internal Size (W*D*H), mm | 630*375*615 | 800*530*540 | 940*540*545 | 1340*540*545 |
Work Surface Height | / | 660mm | 750mm | 750mm |
Display | LED Display | |||
Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | |||
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |||
Work Table: 304 stainless steel(except model BBS-V680) | ||||
Pre-filter | Polyester fiber, washable | |||
HEPA Filter | 99.999% efficiency at 0.3um | |||
Noise | <65dB | |||
Front Window | / | Manual,5mm toughened glass, anti-UV | ||
Max Opening | / | 490mm | 310mm | 310mm |
Illuminating Lamp | Fluorescent Lamp 14W*1 | LED Lamp 8W*1 | LED Lamp 12W*1 | LED Lamp 16W*1 |
UV Lamp | 15W*1 | 20W*1 | 18W*1 | 30W*1 |
Emission of 253.7 nanometers | ||||
Consumption | 160W | 350W | 350W | 600W |
Standard Accessory | Fluorescent lamp, UV lamp*2 Water & gas tap | LED Lamp UV lamp*2 Base stand | LED Lamp UV lamp*2 Base stand | LED Lamp UV lamp*2 Base stand |
Optional Accessory | / | Electric height adjustable base stand | ||
Caster | / | Universal wheel with leveling feet | ||
Power Supply | AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ | |||
Gross Weight | 50kg | 116kg | 131kg | 174kg |
Package Size (W*D*H)mm | 840*560*1380 | 960*800*1800 | 1200*850*1360 | 1600*850*1360 |
